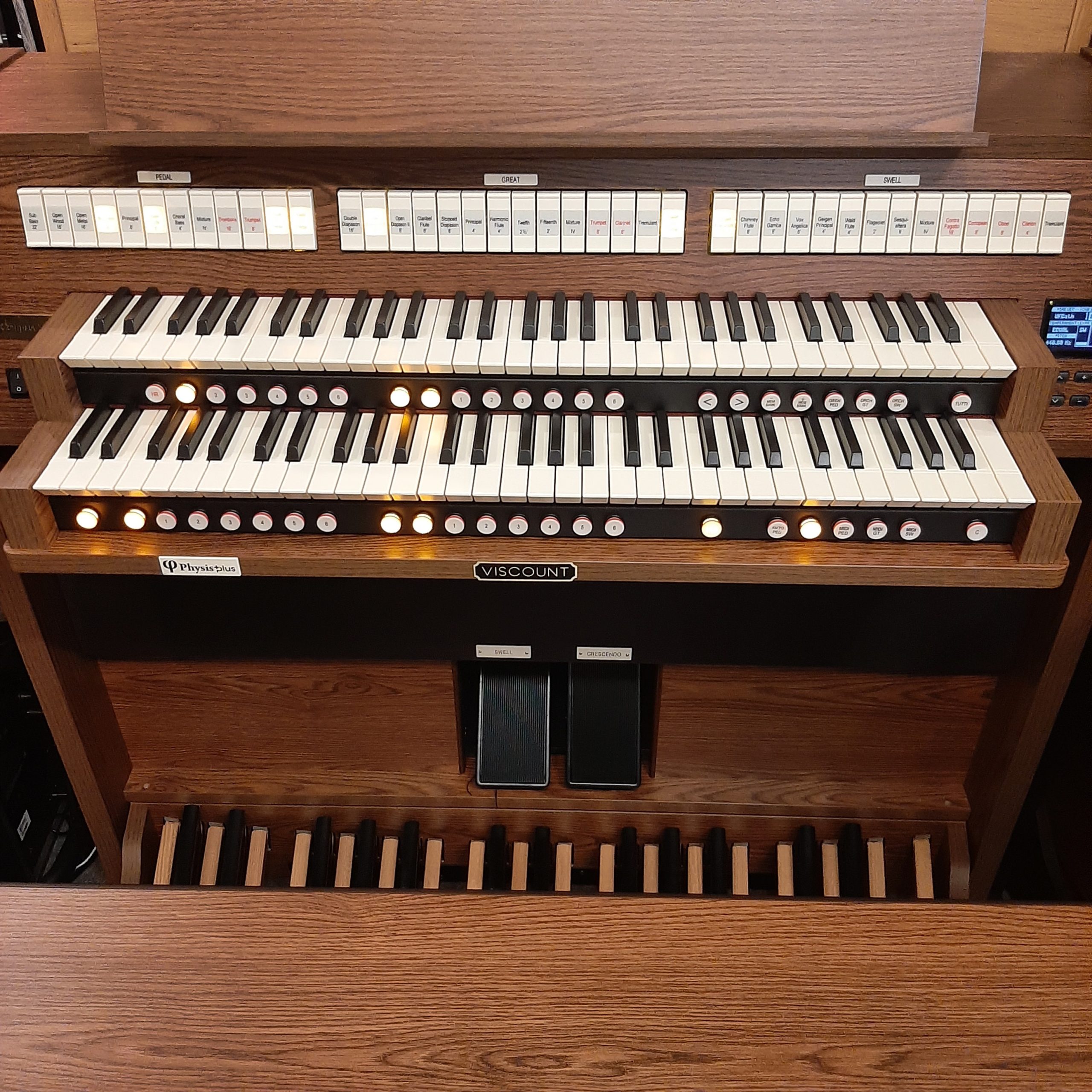

A new choice for churches and homes, the Ensign range uses Viscount’s latest ‘Physis+’ technology, coupled with a wide range of voicing (tonal finishing) tools which allows the organ to be voiced for the specific space it is in, making each installation truly unique. Real wood veneer finishes available dependent on model. See the Video Demonstration

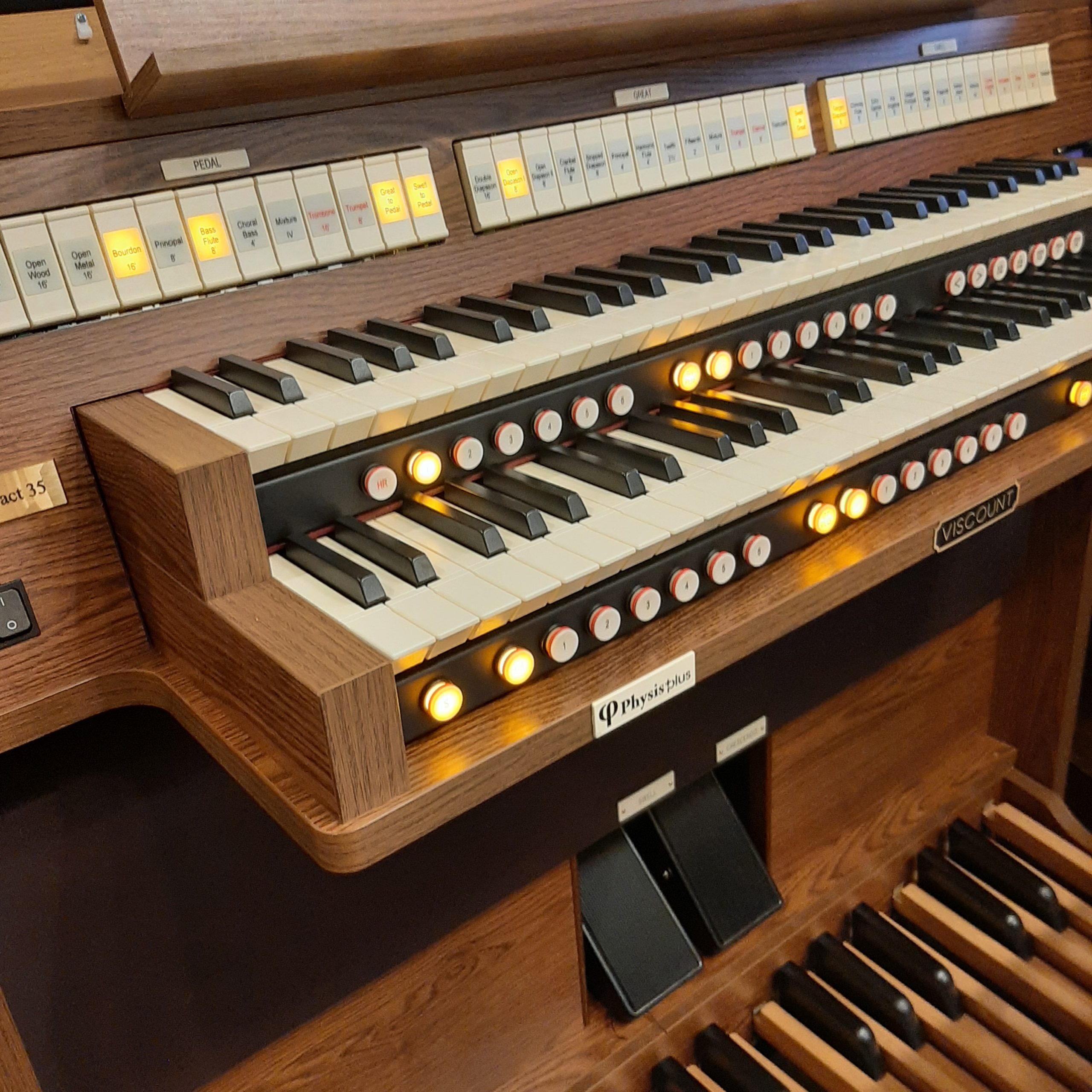

- 2 x 61 note tracker touch keyboards, velocity sensitive for MIDI & orchestral voices
- 30 note radiating concave pedal board
- 35 tilt-tab speaking stops and 3 orchestral pistons
- Alternative organ voices on each tab
- English, Baroque, Romantic & Symphonic pipe sets + 3 user sets
- 19 alternative temperaments + 4 user programmes

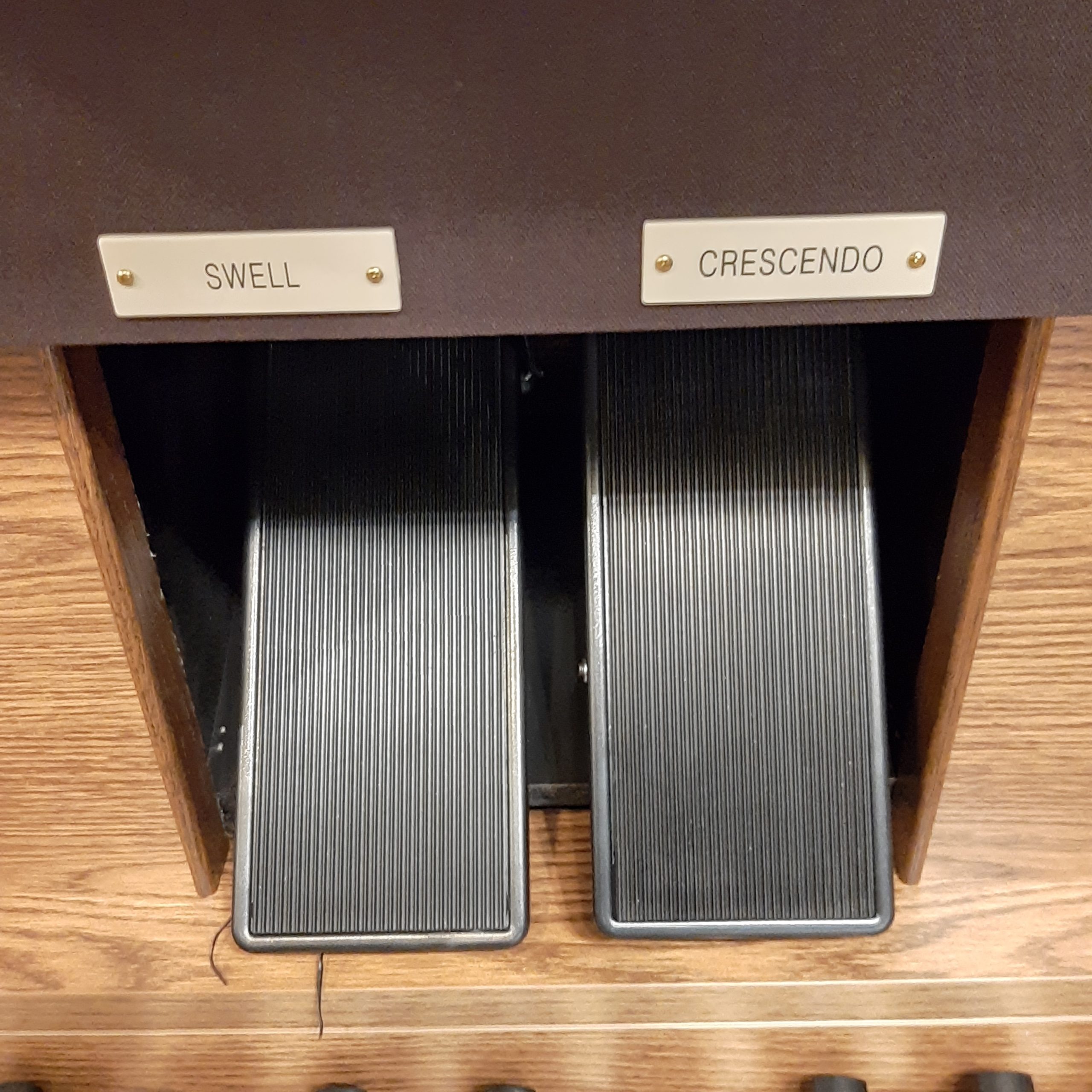

– Swell expression pedal
– Crescendo pedal (can be set as Great/Ped expresssion)
– 6 general pistons
– 6 divisional pistons to Sw/Gt/Ped
– <> stepper pistons
– 99 Capture memories
– Auto pedal & Gt/Ped enclosed pistons
– 2 Independent tremulants per division
– Transposer
– Keyboard inversion

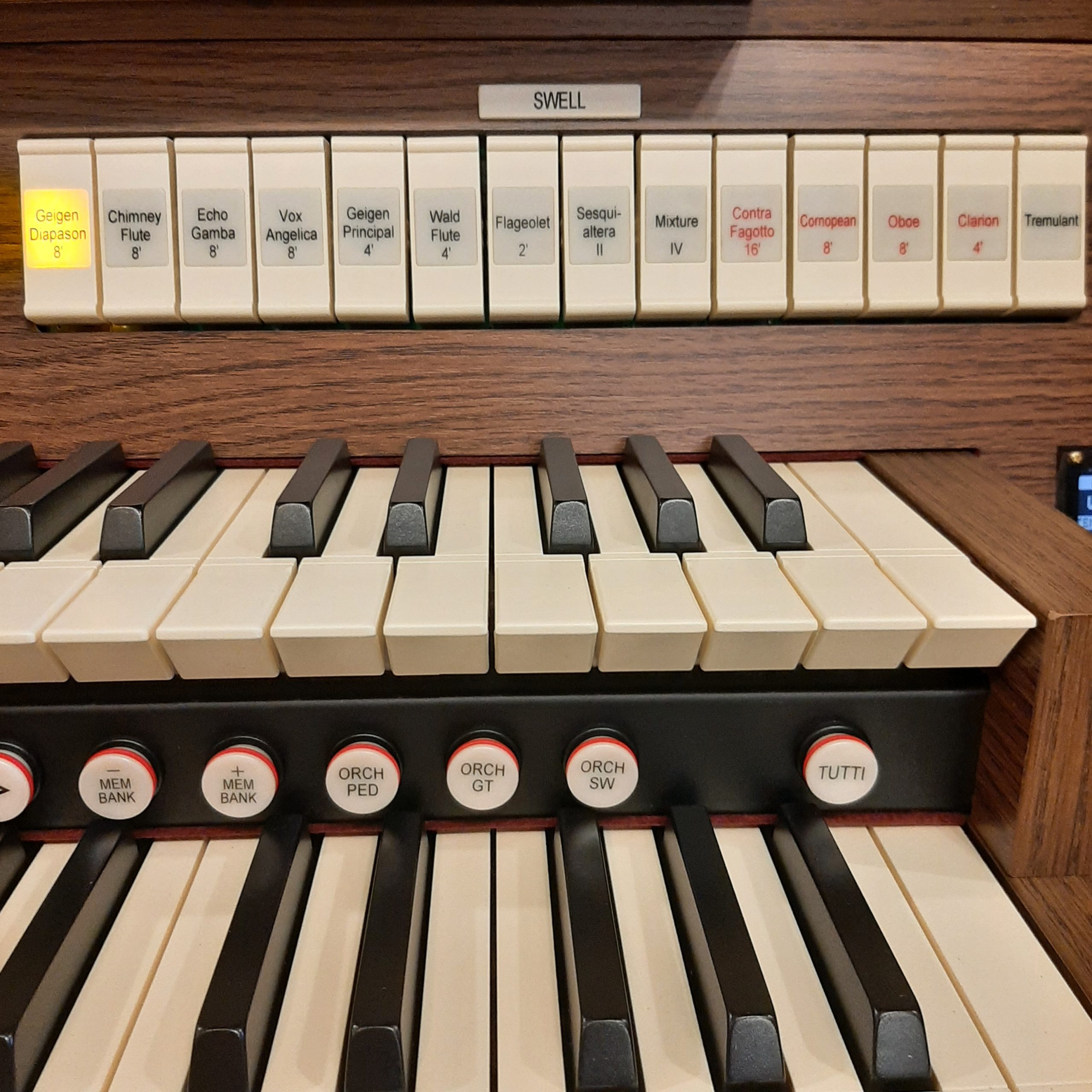

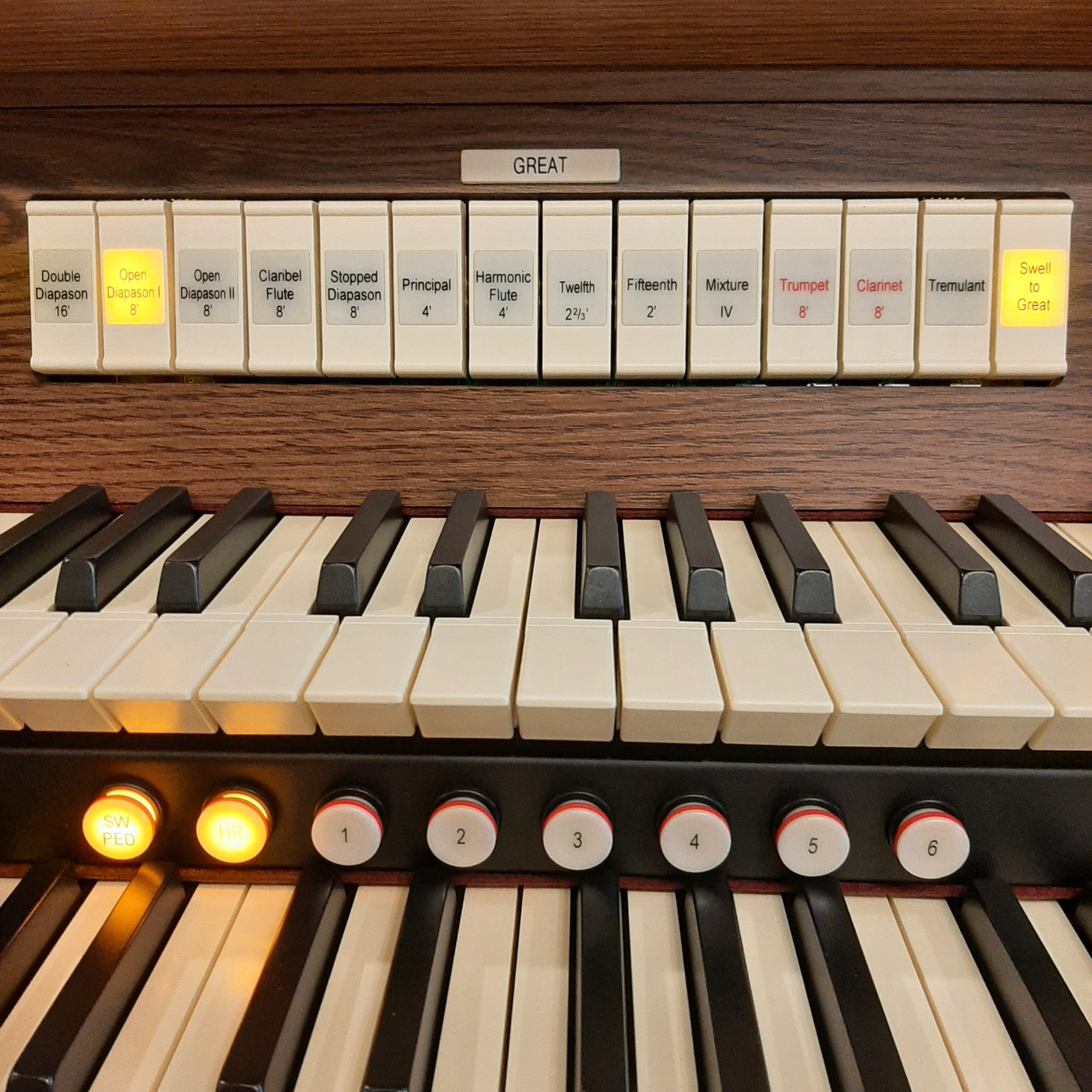

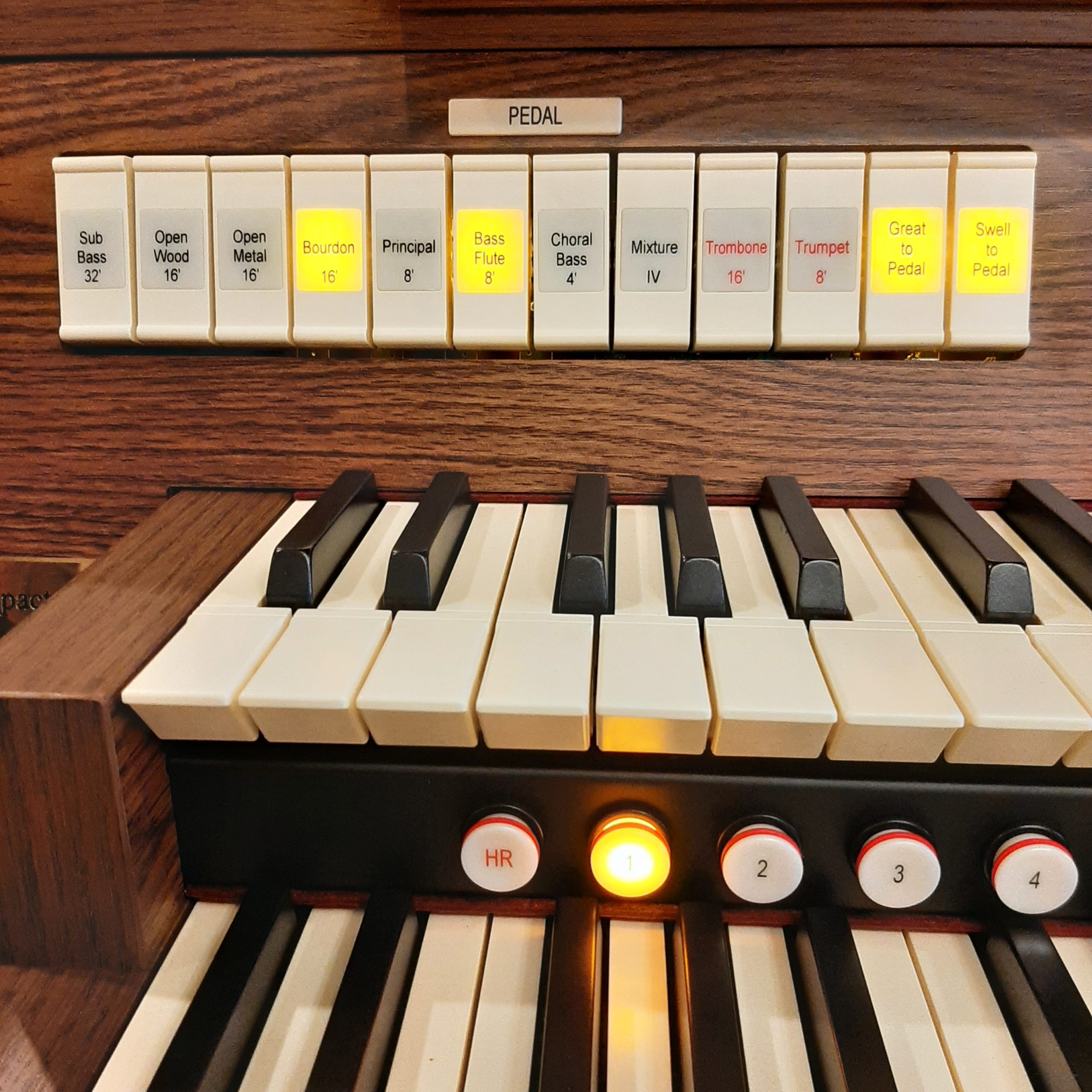

Pedal | Great | Swell | |||
---|---|---|---|---|---|
Sub Bass | 32 | Double Diapason | 16 | Geigen Diapason | 8 |
Open Wood | 16 | Open Diapason I | 8 | Chimney Flute | 8 |
Open Metal | 16 | Open Diapason II | 8 | Echo Gamba | 8 |
Bourdon | 16 | Claribel Flute | 8 | Voix Celeste | 8 |
Principal | 8 | Stopped Diapason | 8 | Geigen Principal | 4 |
Bass Flute | 8 | Principal | 4 | Wald Flute | 4 |
Choral Bass | 4 | Harmonic Flute | 4 | Flageolet | 2 |
Mixture | IV | Twelfth | 2-2/3 | Sesquialtera | II |
Trombone | 16 | Fifteenth | 2 | Mixture | IV |
Trumpet | 8 | Mixture | IV | Contra Fagotto | 16 |
Trumpet | 8 | Cornopean | 8 | ||
Clarinet | 8 | Oboe | 8 | ||
Clarion | 4 | ||||
Great to Pedal | Tremulant | Tremulant | |||
Swell to Pedal | Swell to Great |
126cm (W) x 117cm (H) x 113.5cm (D) with pedal board (57cm without pedal board) Weight 115kg
- Stop by stop voicing
- Independent volume adjustment of each division and stop
- 6 internal speakers (2 tweeter, 2 mid-range, 2 x 8′ sub-woofer)
- 4 x 150W per channel amplifiers
- 5 band graphic EQ
- 8 reverb types – fully adjustable
- Stereo headphone socket
- External outputs to 4 channels
- Audio inputs L/R
- MIDI in/out
- USB type A & B
Call our organ department on 01524 410202 for further details
